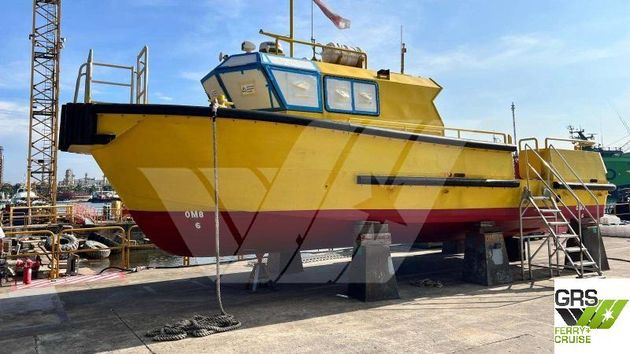

FRC SPEC

Length overall 12.2 metres
Length hull 12.2 metres
Beam (Moulded) 4.5 metres
Draft loaded 0.7 meters
Lightship displacement Approximately 12 tons
Tank Capacities
Fuel Oil 1,800 litres

Crew 1
Passenger 10
Machinery

Main Propulsion Engines 2 x Cummins QSB-6.7 312kW (419bhp ) @ 3000rpm or equal
Propulsion 2 x NAMJET TJ431HH Water Jets

Performance
The vessel shall be capable of achieving the following performance in calm water (up to sea state 2):
Speed 22 knots @ 100% MCR - based on 2.5 Dead Weight
Tonnes (DWT)
Bollard Pull 3.5 tons

DESIGN OPERATING CONDITIONS
Engineering systems shall be designed to operate under the following environmental conditions:
External air 0oC to + 40oC (80% relative humidity)
Machinery space Max 45oC
Sea water 0oC to 32oC

CLASSIFICATION & SURVEY
The vessel is constructed in accordance with the Bureau Veritas Classification Society Rules and
Regulations of Fast Utility Vessel. Plan approval and survey will be completed by Bureau Veritas to the
following notation:
I X HULL l MACH Lightship - Fast Utility Vessel Sea Area 2


DAVIT SPEC
Davit Model PLD-15000
Electric data requirements onboard:
Power supply 415V , 50 Hz , 3 phase from Ship
Power estimate, kW: 142kW
Starter cabinet placement and material:
Inside, Powder coated steel
HPU placement and material: Inside (spray coated steel)
HPU type: Power Supply 144kW 415V , 50 Hz
Oil flow 239 I/min @390 bar
Max Working pressure pm: 319 bar
IP54

Davit operational speed, approx.: 30
Starter type: Included Soft starter panel (indoor) Dimension 800 X 1200X 400mm IP66
Davit emergency lowering speed, approx.: Not included
Safe working load (S.W.L) of davit: 15000 kg
Starboard or Port side mounting: Port side Mounting
Material on pipe set on davit Stainless Steel
Material on fittings Chrome
Material on fitting on hoses Chrome
Paint/coating spec.: Vest davit: VD-CS-92105
Davit Paint colour: RAL 9010
Paint colour of Hydraulic
Power Unit (HPU):
RAL 9010
Paint colour of Starter: RAL 7035
Hydraulic connection points to
be delivered
ISO Metric
LOA 12,2 m
Beam 4,5 m
Draft ,7 m

Class : Bureau Veritas

Total passenger capacity 10
